addTextBoxConnector

ADVANCED / PREMIUM

BASIC

Inserts a text box connector into the PowerPoint presentation.

Description

public addTextBoxConnector($position, array $connection, array $options = array())

This method inserts text box connectors into the PowerPoint presentation.

Parameters

position

Text box position.

Key	Type	Description
coordinateX	int	EMUs (English Metric Unit). Automatically calculated from the start and end connections if not set
coordinateY	int	EMUs (English Metric Unit). Automatically calculated from the start and end connections if not set
sizeX	int	EMUs (English Metric Unit). Automatically calculated from the start and end connections if not set
sizeY	int	EMUs (English Metric Unit). Automatically calculated from the start and end connections if not set
name	string	Internal name. If not set, a random name is generated.
order	int	Set the display order. Default after existing contents. 0 is the first order position. If the order position doesn't exist add after existing contents.

Coordinate and size values must be set.

connection

Key	Type	Description
start	int or string	id or internal name.
end	int or string	id or internal name.
positionStart	string	top left right (default) bottom Only used when $position is calculated automatically. If not set, the position is detected automatically.
positionEnd	string	top left (default) right bottom Only used when $position is calculated automatically. If not set, the position is detected automatically.
flipH	bool	Flipped horizontally. Default as false.
flipV	bool	Flipped vertically. Default as false.

options

Key	Type	Description
color	string	FF0000, 00FFFF...
dash	string	solid dot dash lgDash dashDot lgDashDot lgDashDotDot sysDash sysDot sysDashDot sysDashDotDot
geom	string	bentConnector2 bentConnector3 bentConnector4 bentConnector5 curvedConnector2 curvedConnector3 curvedConnector4 curvedConnector5 straightConnector1 (default)
lineWidth	int	EMUs (English Metric Unit)
rotation	int	60.000ths of a degree.
shapeGuide	array	'fmla' (string) shape guide formula 'guide' (string) shape guide name
tailEnd	string	arrow diamond none oval stealth triangle (default)

Exceptions

Method not available.

Not valid connections.

Position not valid.

Code samples

Example #1

require_once 'classes/CreatePptx.php';

$pptx = new CreatePptx(array('layout' => 'Blank'));

// add new text boxes
$position = array(
    'coordinateX' => 770000,
    'coordinateY' => 500000,
    'sizeX' => 1200000,
    'sizeY' => 750000,
    'name' => 'Custom textbox 1',
);
$textBoxStyles = array(
    'autofit' => 'noautofit',
    'fill' => array(
        'color' => '99B369',
    ),
);
$pptx->addTextBox($position, $textBoxStyles);

$position = array(
    'coordinateX' => 5400000,
    'coordinateY' => 500000,
    'sizeX' => 1200000,
    'sizeY' => 750000,
    'name' => 'Custom textbox 2',
);
$textBoxStyles = array(
    'autofit' => 'noautofit',
    'fill' => array(
        'color' => '99B369',
    ),
);
$pptx->addTextBox($position, $textBoxStyles);

// add text contents in the text boxes
$content = array(
    'text' => 'Textbox 1.',
    'bold' => true,
    'underline' => 'single',
);
$pptx->addText($content, array('placeholder' => array('name' => 'Custom textbox 1')));

$content = array(
    'text' => 'Textbox 2.',
    'bold' => true,
    'underline' => 'single',
);
$pptx->addText($content, array('placeholder' => array('name' => 'Custom textbox 2')));

// the getActiveSlideInformation method can be used to return text box ids and names to be connected
$activeSlideInformation = $pptx->getActiveSlideInformation();

// add a text box connector setting a fixed position
$position = array(
    'coordinateX' => 1970000,
    'coordinateY' => 875000,
    'sizeX' => 3430000,
    'sizeY' => 0,
);
// add the connector using text box IDs. Text box names can be used to connect text boxes
$connection = array(
    'start' => (int)$activeSlideInformation['placeholders'][0]['id'],
    'end' => (int)$activeSlideInformation['placeholders'][1]['id'],
);
$options = array(
    'color' => 'FF0000',
    'dash' => 'sysDash',
    'lineWidth' => 25400,
);
$pptx->addTextBoxConnector($position, $connection, $options);

// add new text boxes
$position = array(
    'coordinateX' => 500000,
    'coordinateY' => 3500000,
    'sizeX' => 750000,
    'sizeY' => 750000,
    'name' => 'My textbox A',
);
$textBoxStyles = array(
    'fill' => array(
        'color' => '03A5FC',
    ),
);
$pptx->addTextBox($position, $textBoxStyles);

$position['coordinateX'] = 4000000;
$position['coordinateY'] = 2500000;
$position['name'] = 'My textbox B';
$pptx->addTextBox($position, $textBoxStyles);

$position['coordinateX'] = 4000000;
$position['coordinateY'] = 4500000;
$position['name'] = 'My textbox C';
$pptx->addTextBox($position, $textBoxStyles);

// add new text contents
$paragraphStyles = array(
    'align' => 'center',
);
$content = array(
    'text' => 'Item A',
);
$pptx->addText($content, array('placeholder' => array('name' => 'My textbox A')), $paragraphStyles);

$content = array(
    'text' => 'Item B',
);
$pptx->addText($content, array('placeholder' => array('name' => 'My textbox B')), $paragraphStyles);

$content = array(
    'text' => 'Item C',
);
$pptx->addText($content, array('placeholder' => array('name' => 'My textbox C')), $paragraphStyles);

// add text box connectors setting an automatic position (the position values are not set). These values can also be automatically calculated based on the positions of the text boxes to be connected
$position = array();
$connection = array(
    'start' => 'My textbox A',
    'end' => 'My textbox B',
);
$options = array(
    'color' => '0000FF',
    'geom' => 'bentConnector3',
    'lineWidth' => 25400,
    'tailEnd' => 'diamond',
);
$pptx->addTextBoxConnector($position, $connection, $options);

$connection = array(
    'start' => 'My textbox A',
    'end' => 'My textbox C',
);
$options = array(
    'color' => '0000FF',
    'geom' => 'bentConnector3',
    'lineWidth' => 25400,
    'tailEnd' => 'diamond',
);
$pptx->addTextBoxConnector($position, $connection, $options);

$pptx->savePptx('output');

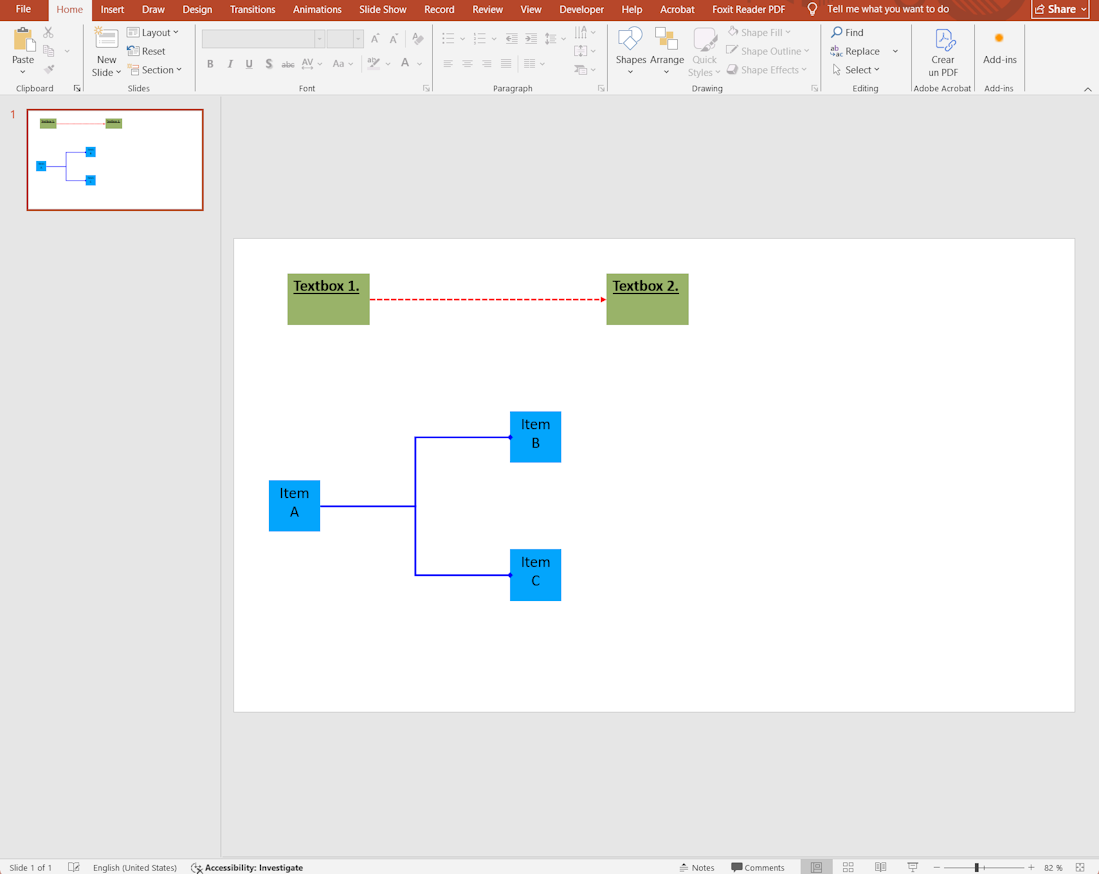

The resulting PPTX looks like:

Release notes

phppptx 4.0:
- new method.
