createTableStyle

PowerPoint has limitations when creating table styles, as only a few styles are available. Additional styles can be applied to the table contents using phppptx methods.

Parameters

name

Table style name.

styles

Key	Type	Description
backgroundColor	string	HEX color.
bold	bool
border	array	Available positions: top right bottom left insideH insideV Available styles: 'dash' (string) solid, dot, dash, lgDash, dashDot, lgDashDot, lgDashDotDot, sysDash, sysDot, sysDashDot, sysDashDotDot 'color' (string) default as 000000. none to avoid adding the color 'width' (int) EMUs (English Metric Unit). Default as 12700 (1pt)
italic	bool

Available types:

wholeTbl : whole table
band1H : band 1 horizontal
band2H : band 2 horizontal
band1V : band 1 vertical
band2V : band 2 vertical
lastCol : last column
firstCol : first column
lastRow : last row
firstRow : first row
neCell : northeast cell
seCell : southeast cell
swCell : southwest cell
nwCell : northwest cell

Exceptions

Duplicated table style name.

Code samples

Example #1

require_once 'classes/CreatePptx.php';

$pptx = new CreatePptx(array('layout' => 'Blank'));

// create a new table style
$tableStyleOptions = array(
    'wholeTbl' => array(
        'backgroundColor' => 'E5F3FD',
        'border' => array(
            'top' => array('color' => 'FF0000'),
            'left' => array('color' => 'FF0000', 'dash' => 'dot'),
            'bottom' => array('color' => 'FF0000', 'width' => 50000),
            'right' => array('color' => 'FF0000', 'dash' => 'dot'),
            'insideV' => array('color' => 'none'),
        ),
    ),
    'firstRow' => array(
        'backgroundColor' => 'FFFF00',
        'border' => array(
            'top' => array('color' => 'none'),
            'left' => array('color' => '00FF00'),
            'bottom' => array('color' => '00FF00'),
            'right' => array('color' => '00FF00'),
        ),
        'bold' => true,
        'italic' => true,
    ),
    'firstCol' => array(
        'backgroundColor' => 'FF0000',
        'border' => array(
            'top' => array('width' => 50000),
            'left' => array('color' => '0000FF'),
            'bottom' => array('color' => '0000FF'),
            'right' => array('color' => '0000FF'),
        ),
    ),
);
$pptx->createTableStyle('MyTableStyle', $tableStyleOptions);

// add a table
$content = array(
    array('Title A', 'Title B', 'Title C'),
    array('Cell 2.1', 'Cell 2.2', 'Cell 2.3'),
    array('Cell 3.1', 'Cell 3.2', 'Cell 3.3'),
    array('Cell 4.1', 'Cell 4.2', 'Cell 4.3'),
);
$position = array(
    'coordinateX' => 4500000,
    'coordinateY' => 2500000,
    'sizeX' => 3500000,
    'sizeY' => 750000,
);
// enable the required styles
$tableStyles = array(
    'firstColumn' => true,
    'headerRow' => true,
    'style' => 'MyTableStyle',
);
// table using a table style and custom styles
$pptx->addTable($content, $position, $tableStyles);

$pptx->savePptx('output');

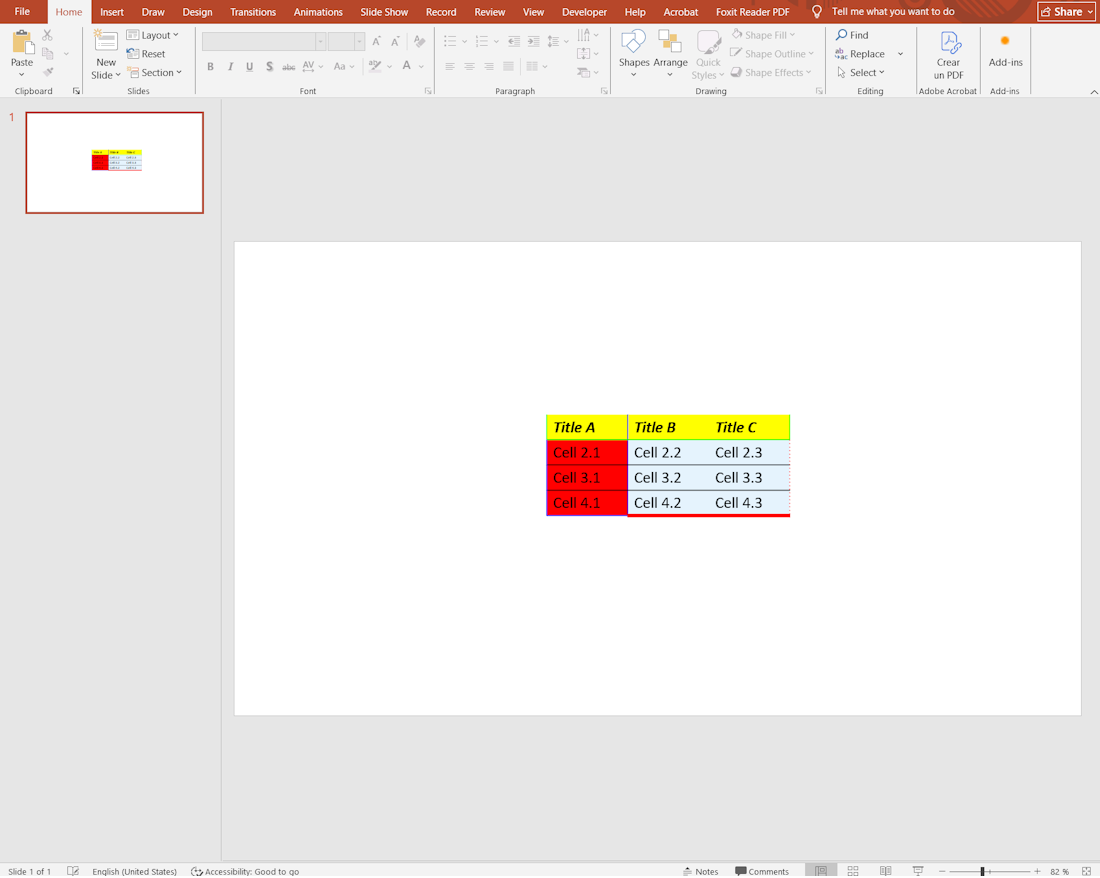

The resulting PPTX looks like:

Release notes

phppptx 4.0:
- new method.
